LOGITECH TAP SCHEDULER

Purpose-built scheduling panel for meeting rooms

Coming Fall 2021

RIGHT PLACE, RIGHT TIME

Tap Scheduler makes it easy to see meeting details and reserve a room for ad hoc or future meetings. Easily deploy as a purpose-built scheduling panel for leading room scheduling solutions to help workers find and claim the right space.

For the latest availability, certification, and compatibility information, here.

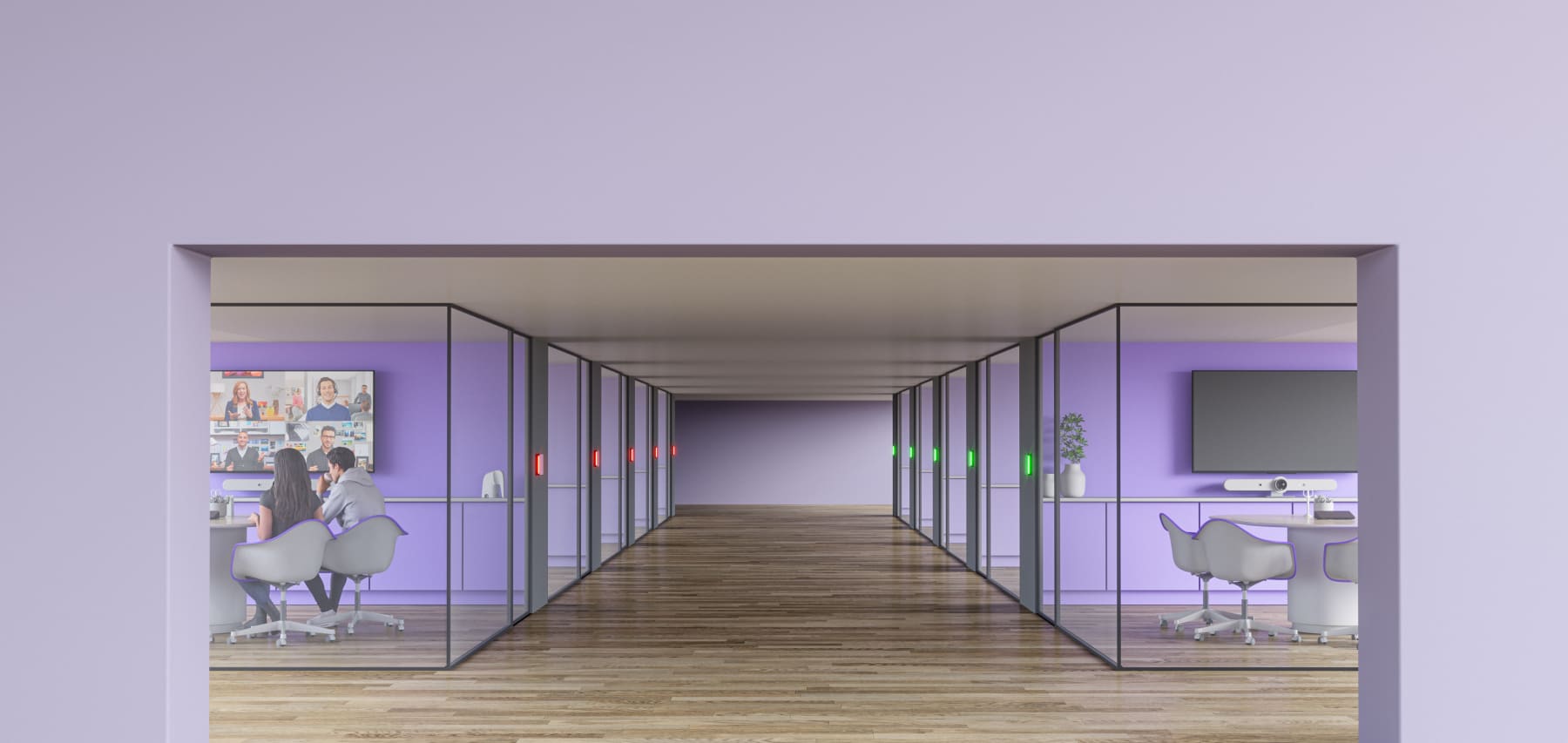

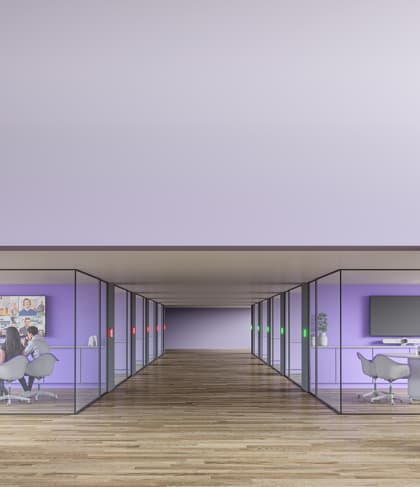

GREEN MEANS GO

Quickly find an open room through colored LED lights that show availability at a distance.

CLEAN AND EASY INSTALL

Included mounts and clean cabling help ensure a tidy and professional setup.

GLASS MOUNTING

Secure Tap Scheduler while maintaining a clean look on both sides of the glass.

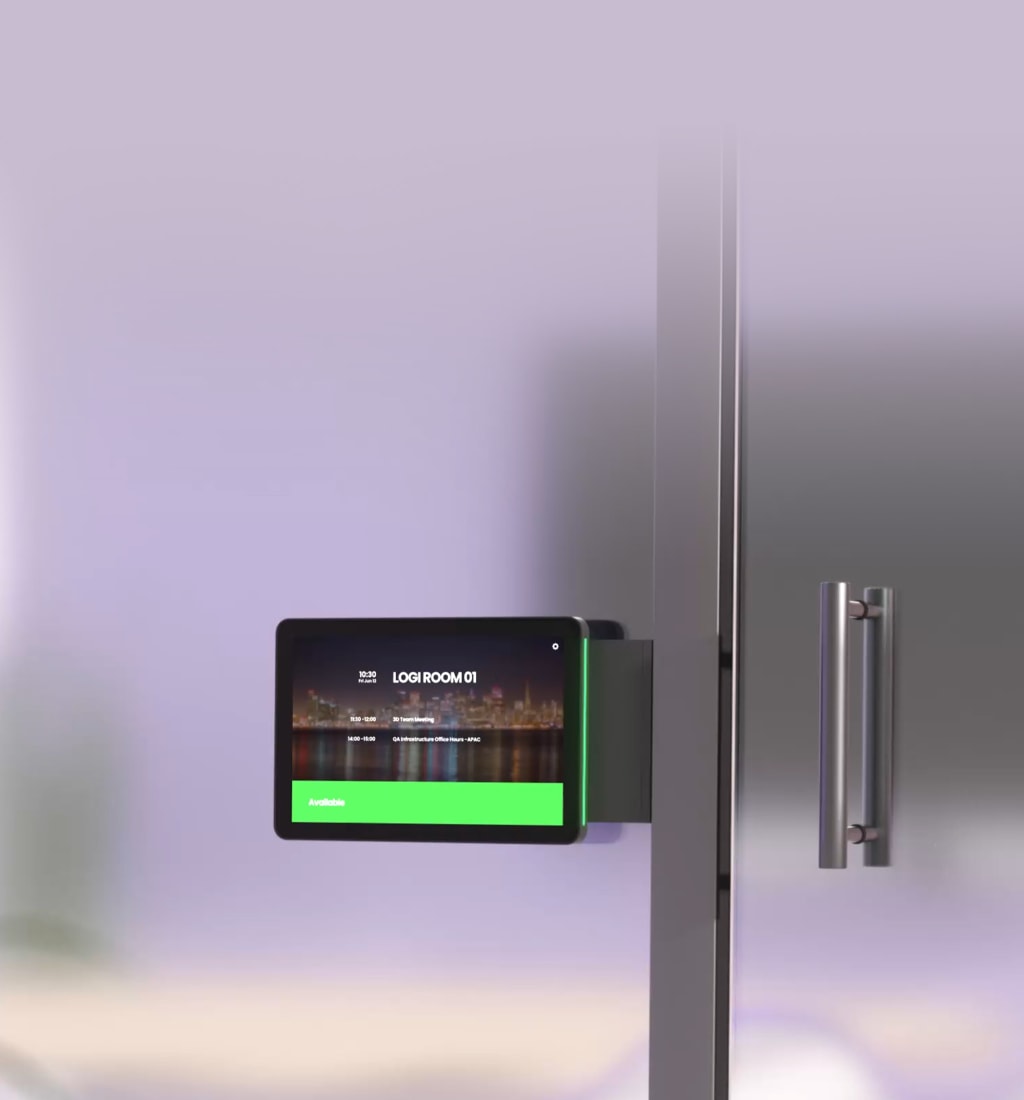

MULLION MOUNTING

Secure Tap Scheduler to a door or window frame for greater visibility using the included mount.

WALL MOUNTING

Place and secure Tap Scheduler anywhere on a wall.

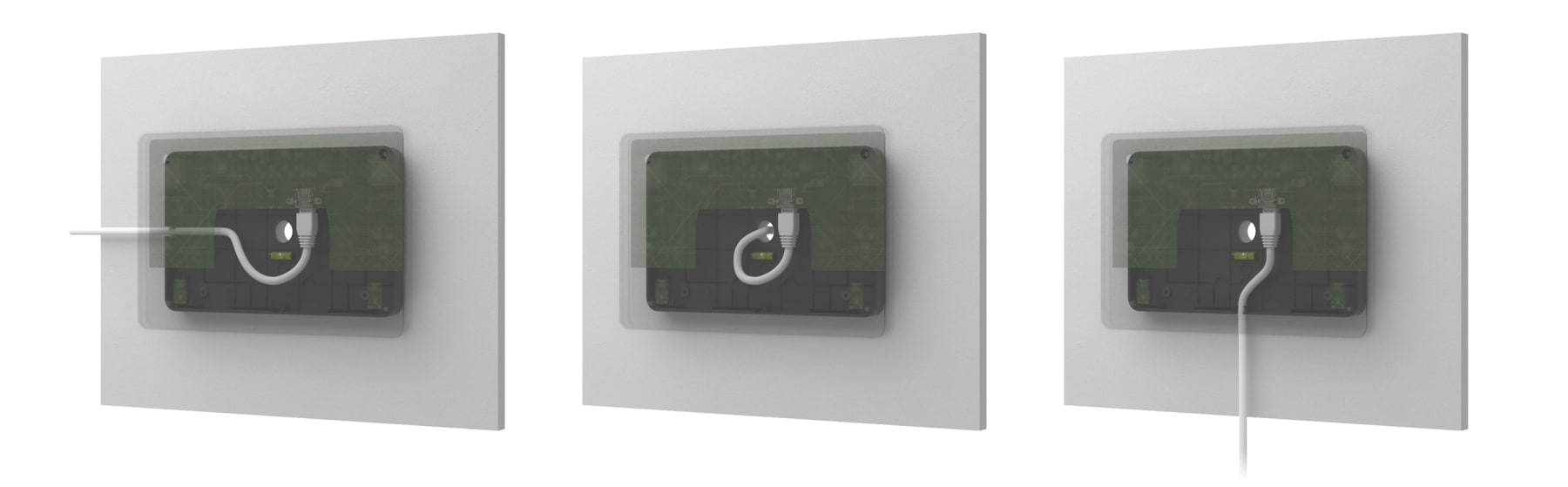

CABLE MANAGEMENT

Hide cables in the wall, mullion, or in other directions, with multiple routing options.

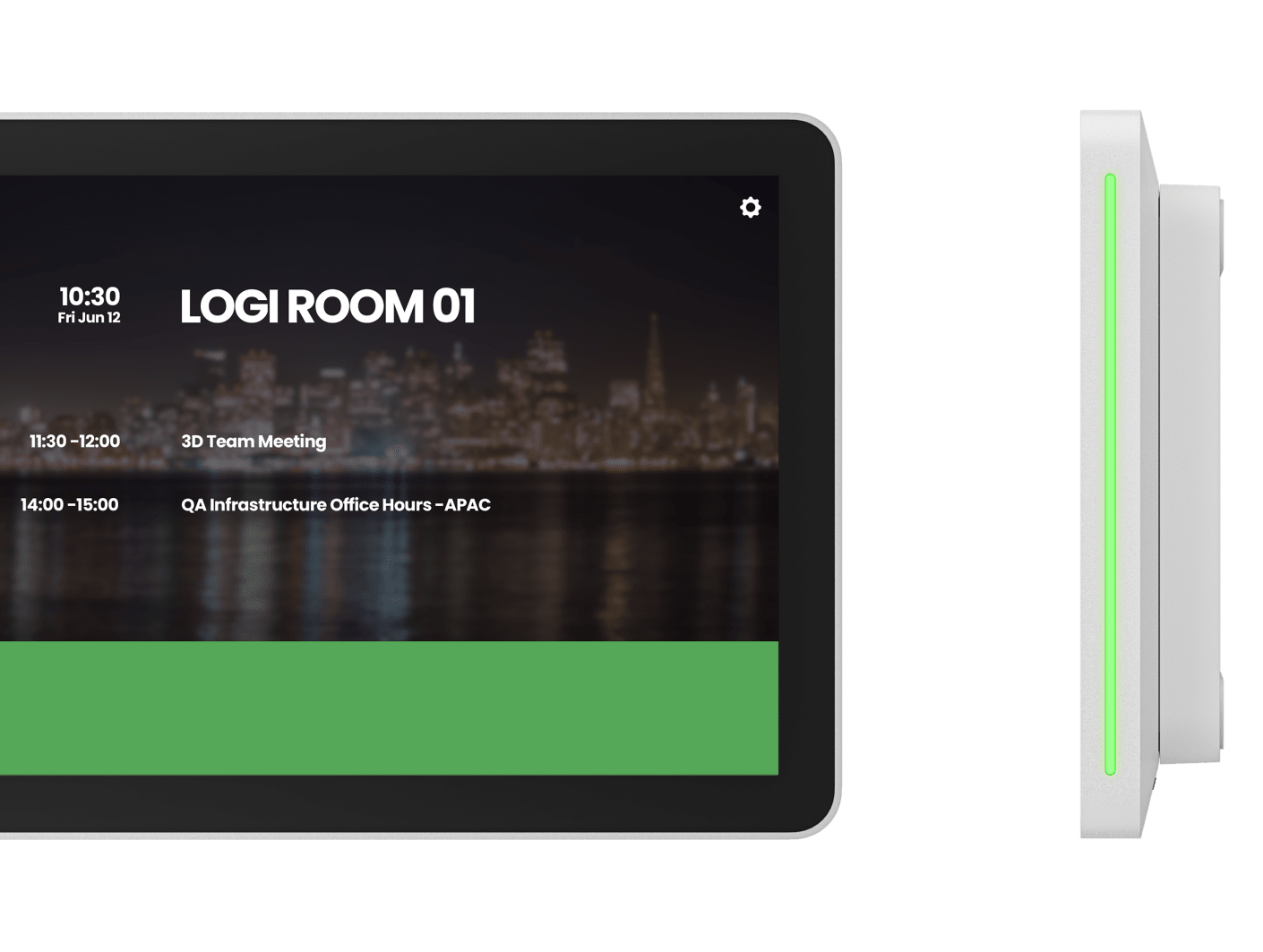

PURPOSE-BUILT AS A SCHEDULING PANEL

Tap Scheduler was designed for easy viewing and usability, with a spacious screen and a sleek, unobtrusive profile. Count on Tap Scheduler for reliable performance with durable components that are built to last.

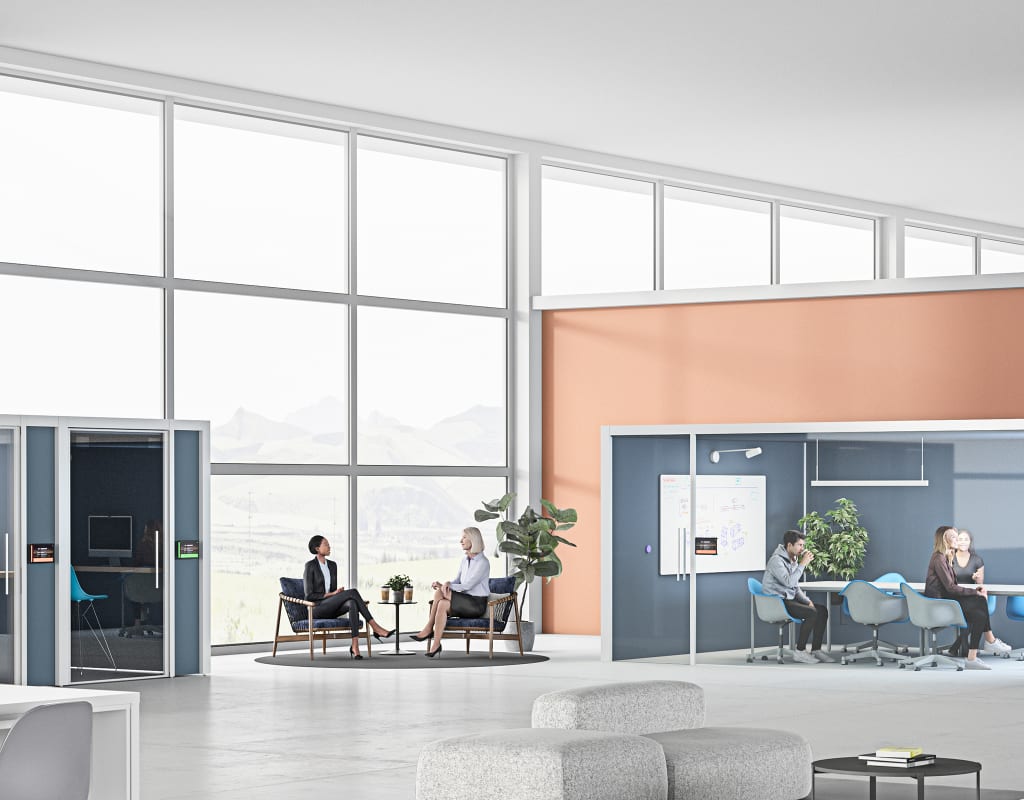

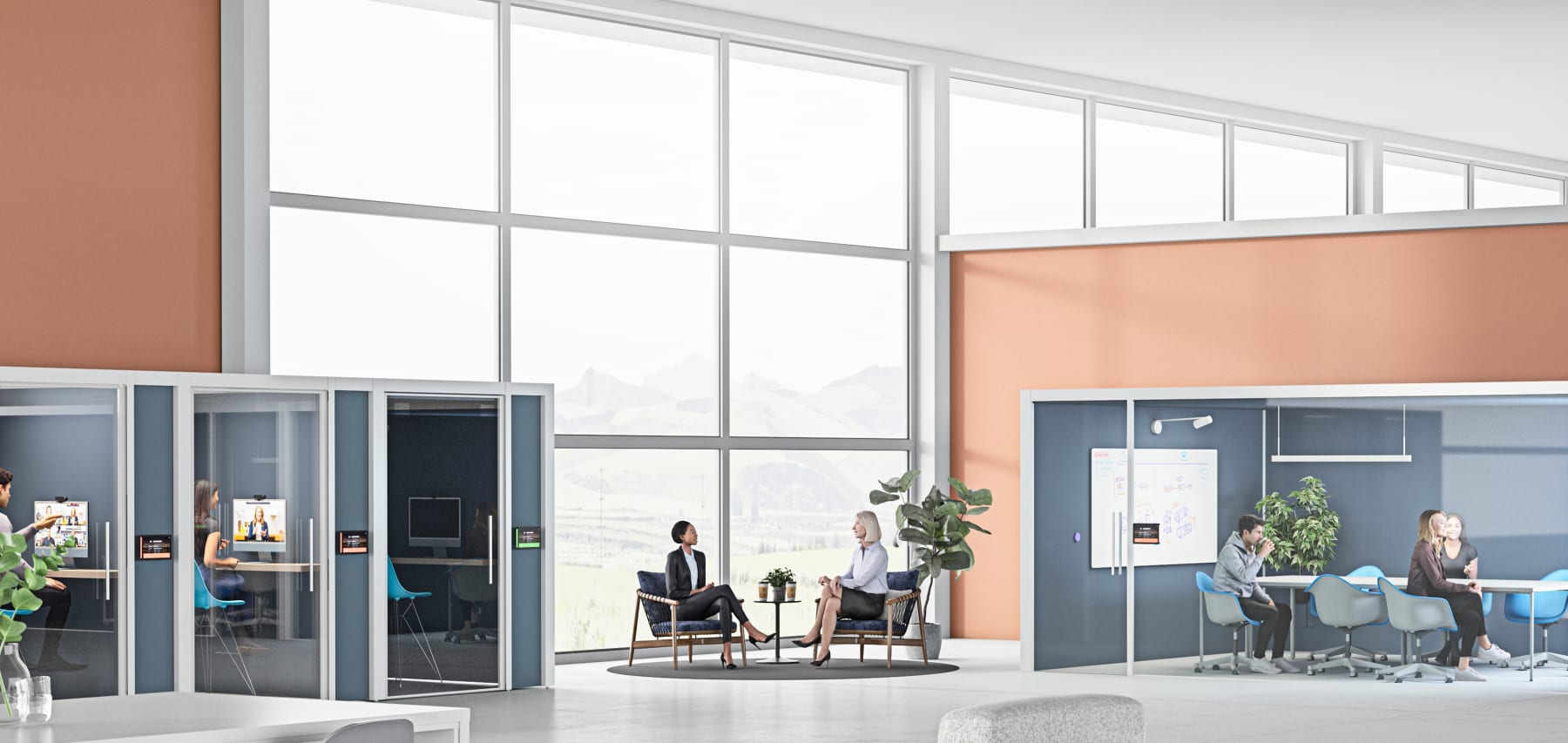

MAKE THE MOST OF YOUR SPACE

Easily add Tap Scheduler to a variety of meeting rooms, from phone booths to video rooms to hangout nooks, helping employees quickly find the right meeting location. Simple installations and an intuitive user experience drive fast deployment and adoption.

PICK YOUR PLATFORM

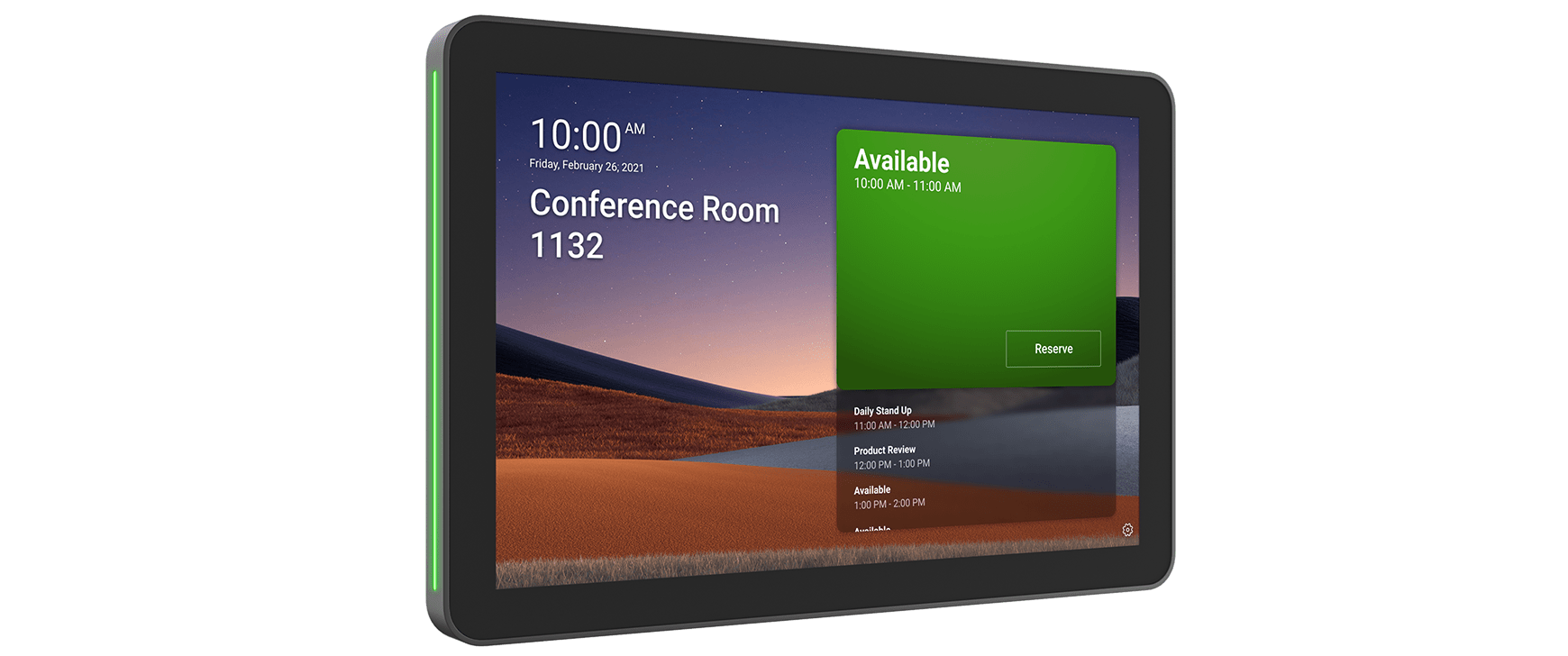

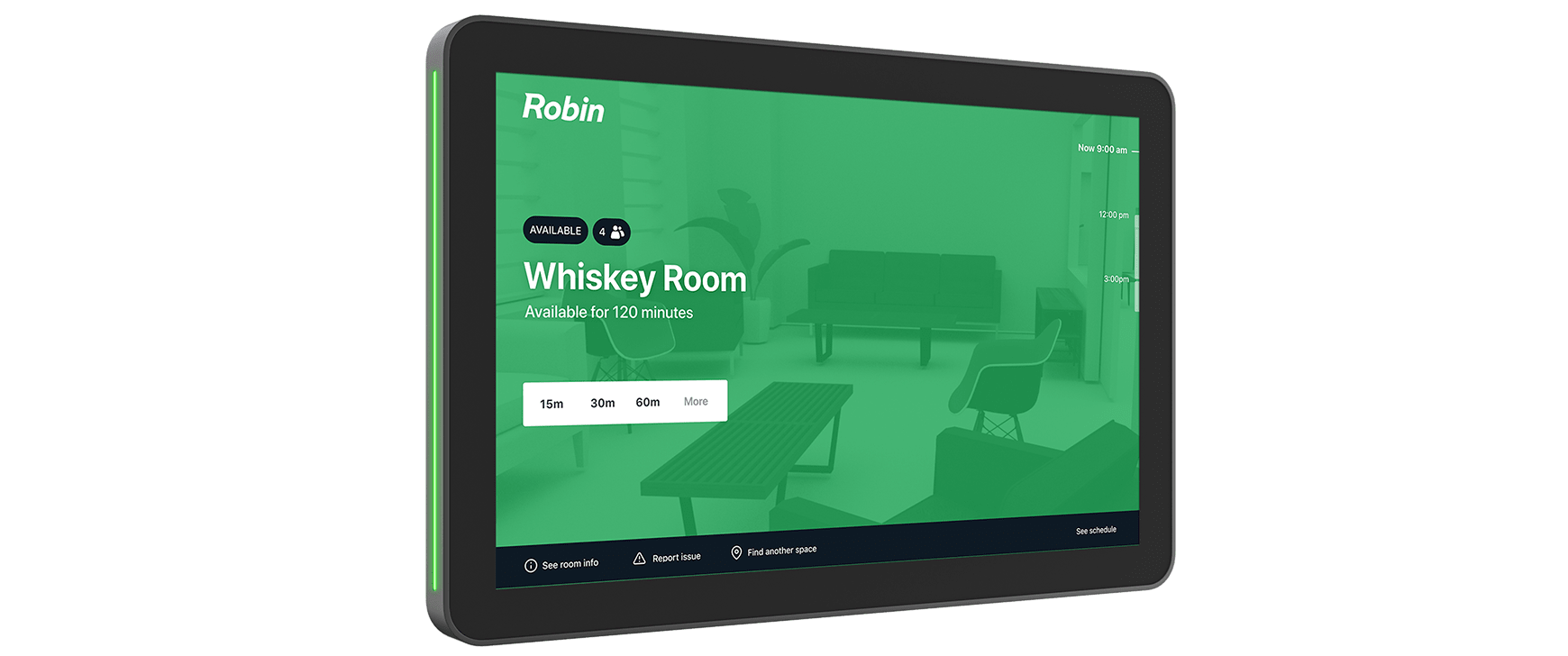

Enable a seamless meeting experience through Tap Scheduler and Logitech’s suite of room solutions, which integrate with Microsoft Teams®, Zoom Rooms™, and other service providers to raise the bar on collaboration.

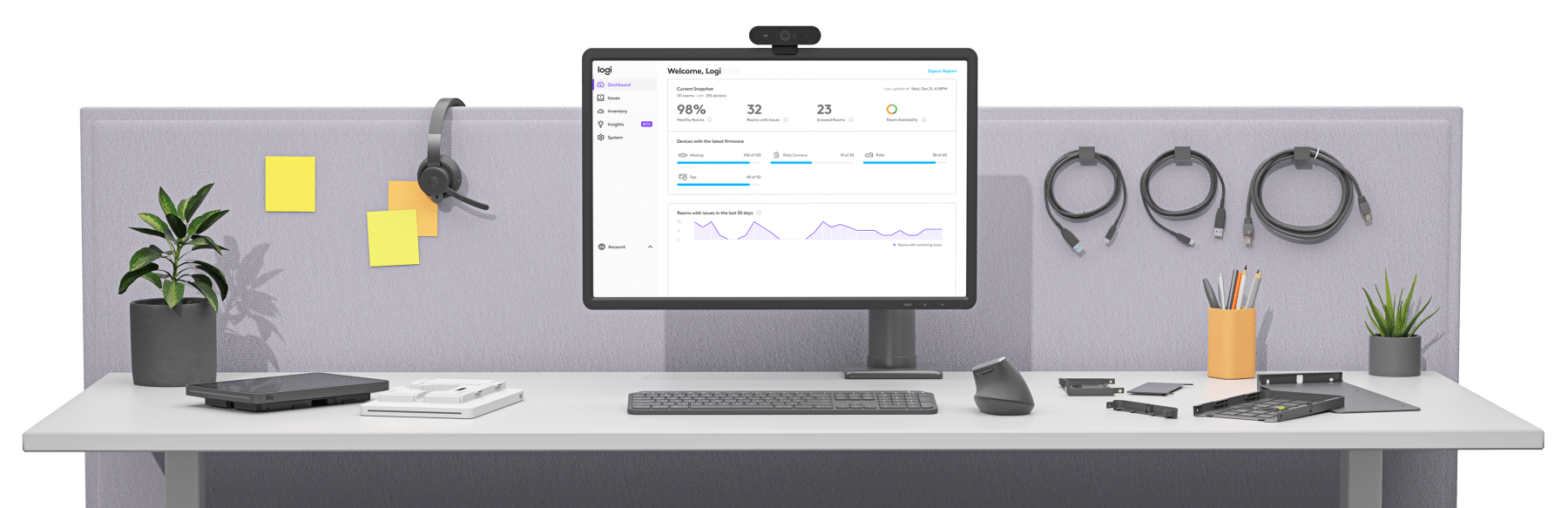

SIMPLE TO MANAGE WITH LOGITECH SYNC

With Logitech Sync, you can monitor and manage Tap Scheduler along with your other meeting room devices from one single platform.

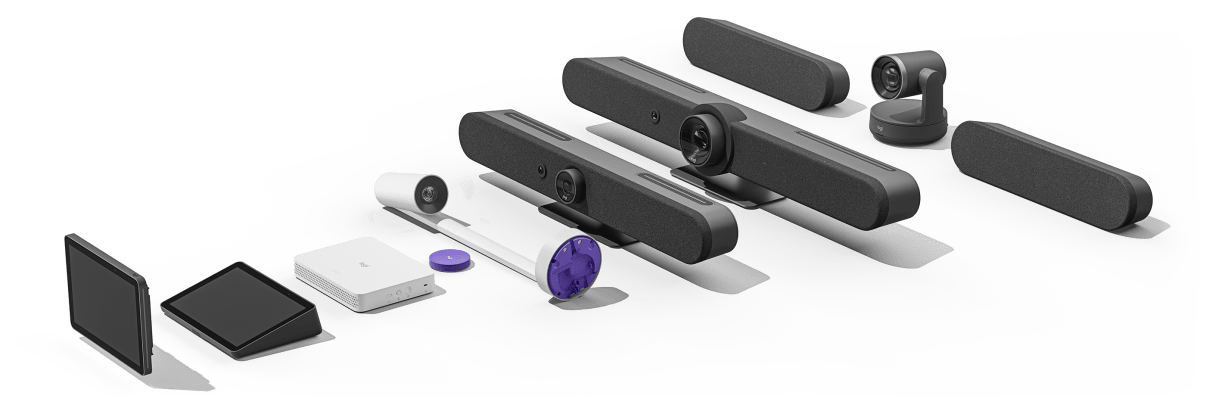

UP TO THREE YEAR WARRANTY

Ensure peace of mind with an extended warranty for Tap Scheduler, adding one additional year to the standard two-year limited hardware warranty.

Not available in all countries. Please check with your reseller for availability.

LOGITECH TAP SCHEDULER


Purpose-built scheduling panel for meeting rooms


FIND A RESELLER
SPECIFICATIONS

DIMENSIONS

Device-only

  • Height: 165 mm
  • Width: 246.2 mm
  • Depth: 28.5 mm
  • Weight: 0.7 kg

Surface-mounted

  • Height: 165 mm
  • Width: 246.2 mm
  • Depth: 31.4 mm

Mullion-mounted

  • Height: 165 mm
  • Width: 292.6 mm
  • Depth: 44.5 mm

TECHNICAL SPECIFICATIONS

Screen

  • Size: 10.1” diagonal
  • IPS (In-Plane Switching)
  • LCD Panel with LED Backlighting
  • Resolution: 1280 x 800 resolution
  • Touch: Capacitive, 10 points multi-touch
  • Brightness: 400 nits
  • Contrast: 1000:1
  • Anti Fingerprint: Oleophobic coating
  • Viewing angle: 85 degrees (U/D/L/R)
  • Position angle: 0 degrees (flat on mounting surface)

GENERAL SPECIFICATIONS

  • Integrated accelerometer
  • Integrated ambient light sensor
  • 100 mm x 100 mm VESA FDMI
  • Cable exits: horizontal / vertical / center

COMPATIBILITY AND CERTIFICATIONS

  • Logitech Tap Scheduler integrates with leading room scheduling solutions as a
  • Microsoft Teams Panel

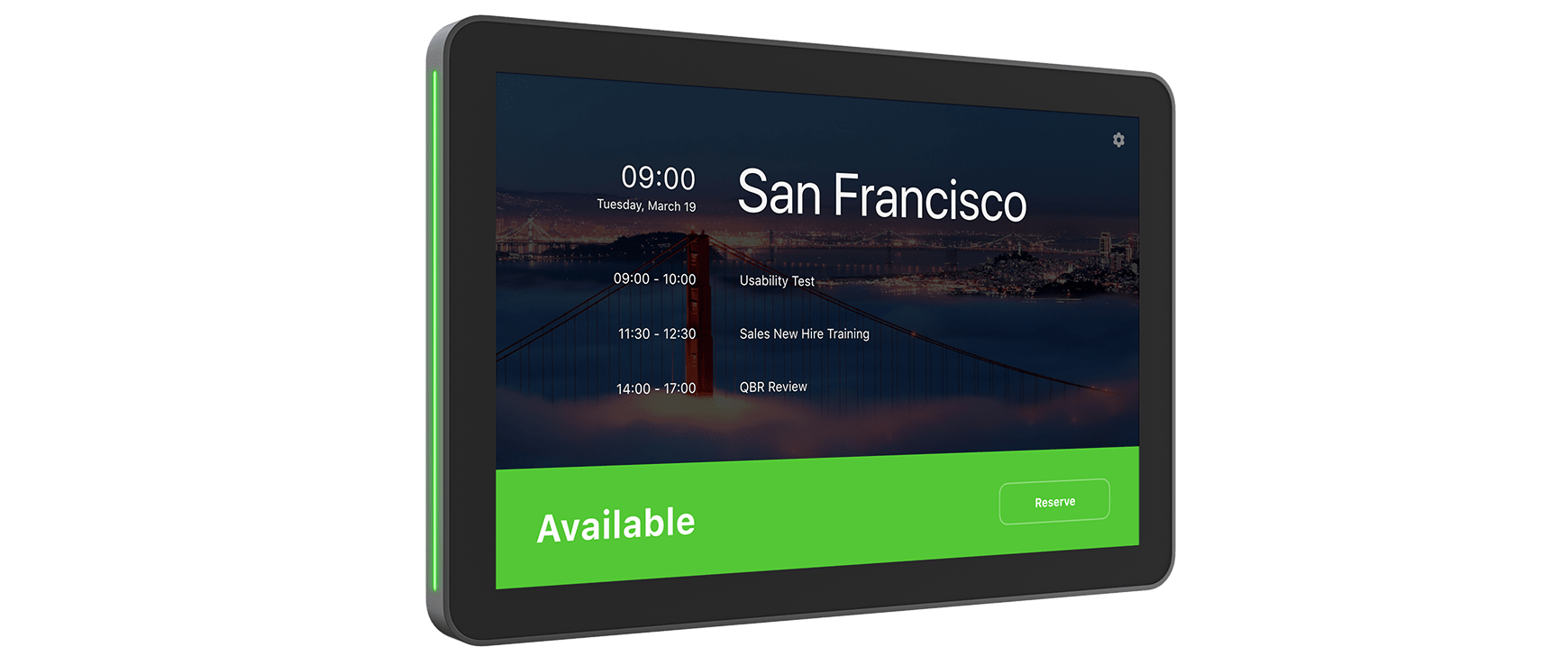

  • Zoom Rooms Scheduling Display
  • Robin-Powered scheduling panel

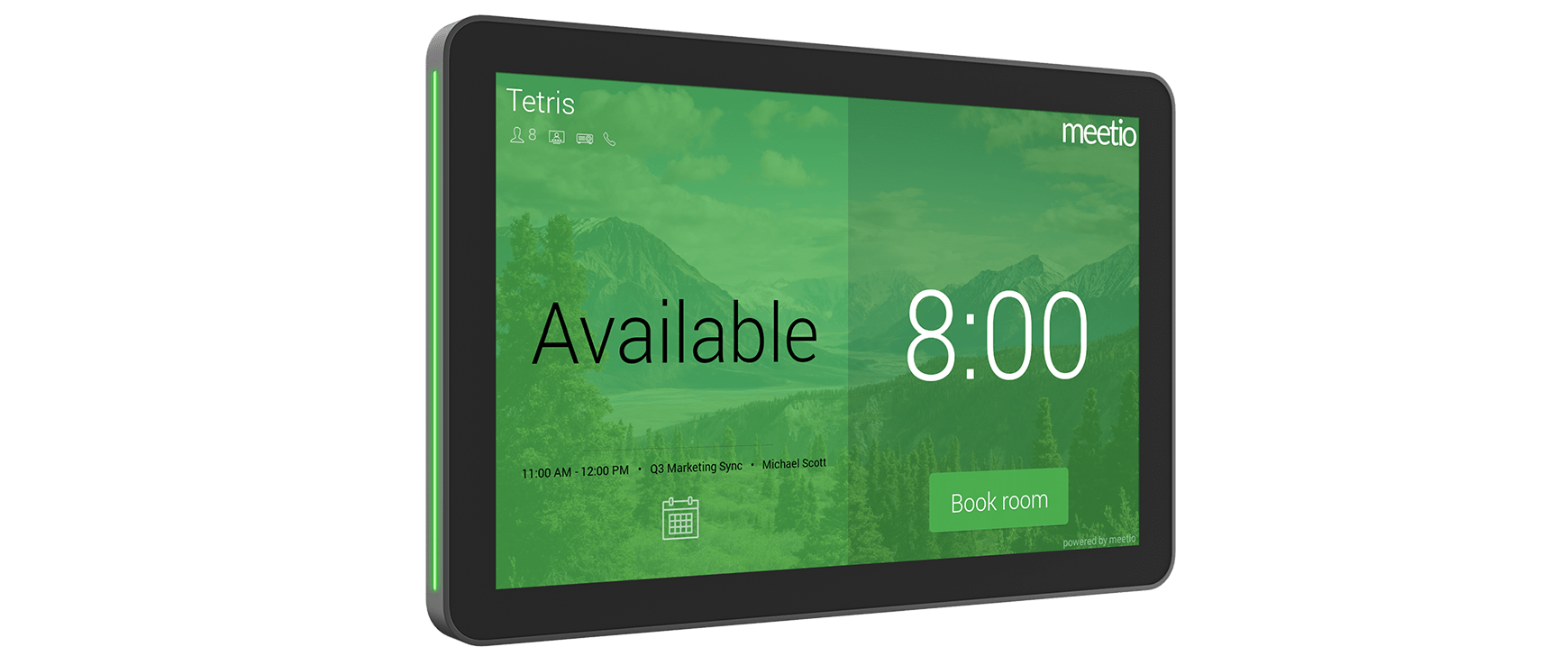

  • Meetio scheduling panel
  • See www.logitech.com/support/tapscheduler-compatibility for the latest certification and compatibility information.
  • Logitech CollabOS platform
  • Logitech Sync Remote Management

Power and Cables

  • Power over Ethernet (PoE), IEEE 802.3af Type 1, Class 3 device*
  • *Requires PoE enabled network or PoE Injector and ethernet cable (Not included)

PORTS AND INTERFACES

  • Ethernet: 10/100 Mbps
  • WiFi: 802.11a/b/g/n/ac
  • Bluetooth 5.0 (inactive, reserved for future use)

Environmental

  • Operating Temperature: 0 to 40°C
  • Storage Temperature: -40 to 70°C
  • Humidity: 10-95%

Security

  • Full Disk Encryption: AES-128
  • Data Encryption: Symmetric Keys, PKI
  • Device Identity: Protected by device attestation
  • Key Protection: Arm TrustZone

PACKAGE CONTENTS

  • Logitech Tap Scheduler
  • Multi-surface mount (glass/drywall)
  • Corner mount accessory
  • Mullion mount
  • Mounting hardware
  • Documentation

WARRANTY INFORMATION

Ensure peace of mind with an extended warranty for Tap Scheduler, adding one additional year to the standard two-year limited hardware warranty.
Contact your reseller for availability.

PORT NUMBER

  • Graphite: 960-001312
  • White: 960-001324
