SIMPLE TO SET UP

Connect via USB to virtually any PC or Mac with no additional software needed.

Shown with optional PC and Logitech Tap.

Run supported video conferencing applications – such as Zoom Rooms, Microsoft Teams Rooms, and others – directly on the device with no computer or laptop required.

*See specs section for full list of supported appliance partners

Ensure clean, confident installs with secure cable retention and minimal cabling.

Take advantage of multiple mounting options to deploy Rally Bar quickly and easily across all your midsize rooms.

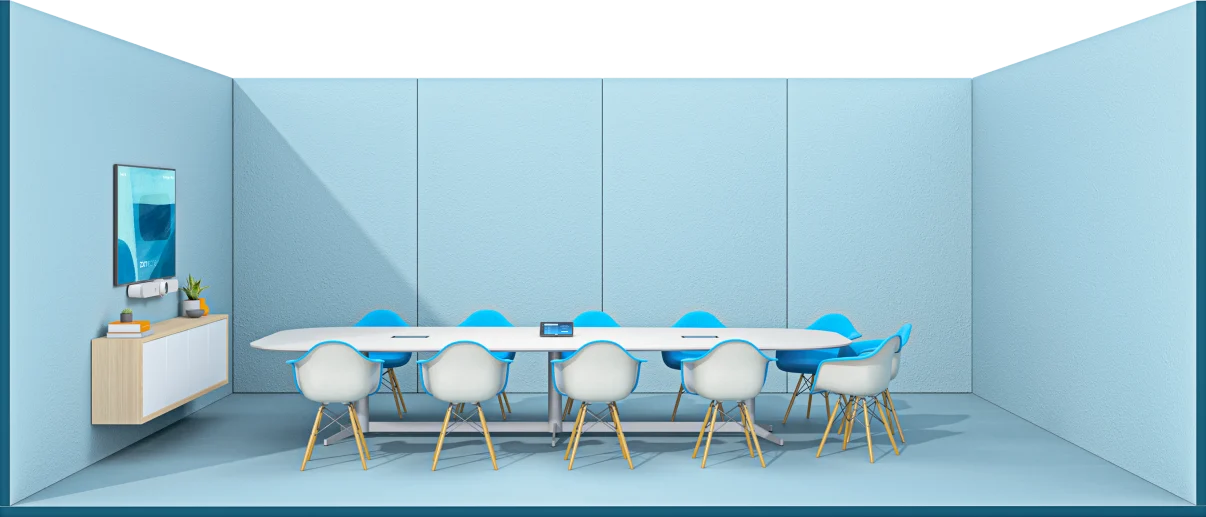

SIMPLE TO USE

Start your meeting with just one touch, seamlessly connecting Rally Bar to your preconfigured room solution..1

LOOKS BRILLIANT

Upgrade the meeting experience with cinema-quality video, outstanding color, and exceptional optical accuracy.

WATCH: DIGITAL VS. OPTICAL ZOOM

STAYS FOCUSED

Using AI, human perception, and motorized PTZ, Rally Bar adapts to meeting dynamics and keeps the camera on the action.

SOUNDS AWESOME

Rally Bar’s advanced audio engineering delivers powerful, room-filling sound and makes sure every voice is clearly heard.

This diagram is not an exact replica of Rally Bar's interior. The color is intended to highlight features.

GREAT CONVERSATIONS START HERE

LEARN MORE ABOUT RIGHTSOUND

Auto-level loud and soft voices – while suppressing unwanted noise – with AI-based RightSound technology that improves over time.

Focus on the active talker with high-precision beamforming mics.

Hear and be heard at the same time with excellent full duplex.

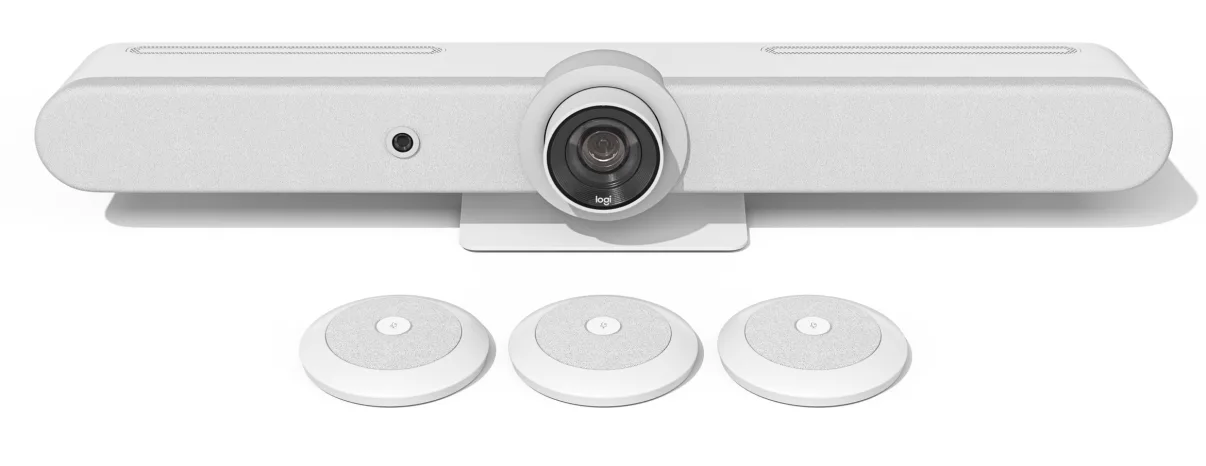

EXPAND THE CONVERSATION

Easily accommodate larger groups and spaces, starting with a 4.57 m mic pickup range and the option to extend up to three Rally mic pods (varies by environment).

LEARN MORE ABOUT RALLY MIC PODS

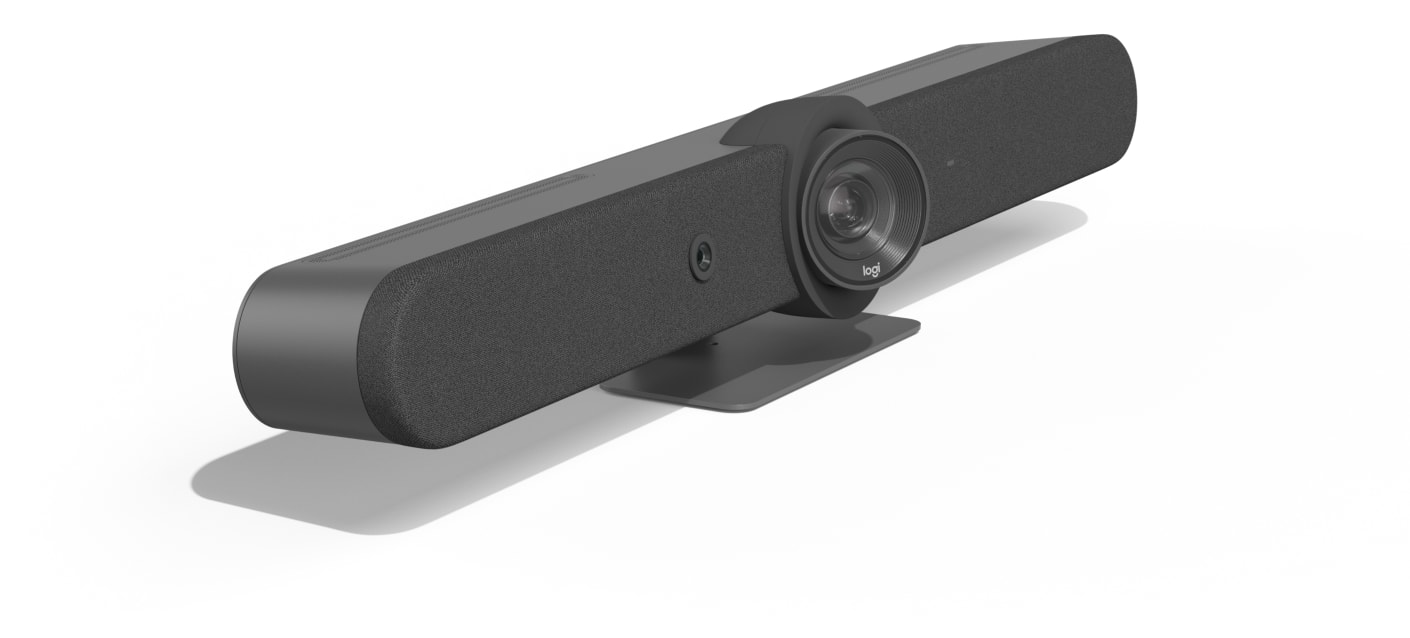

SUPER SMART

Keep the focus on meeting participants with AI Viewfinder, which uses scene awareness to optimize RightSight auto-framing and camera control.

LEARN MORE ABOUT RIGHTSIGHT™

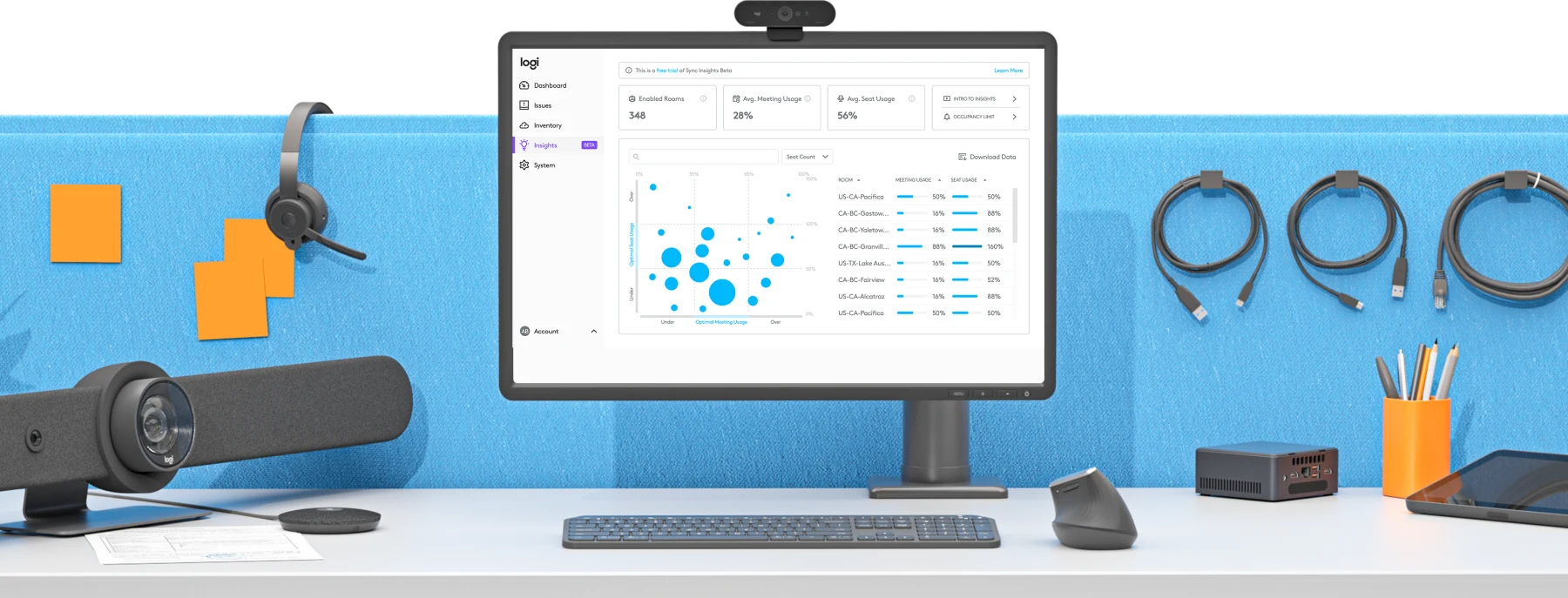

AI-DRIVEN INSIGHTS

Track room usage data from the Logitech Sync Dashboard, captured by AI Viewfinder’s people count function.

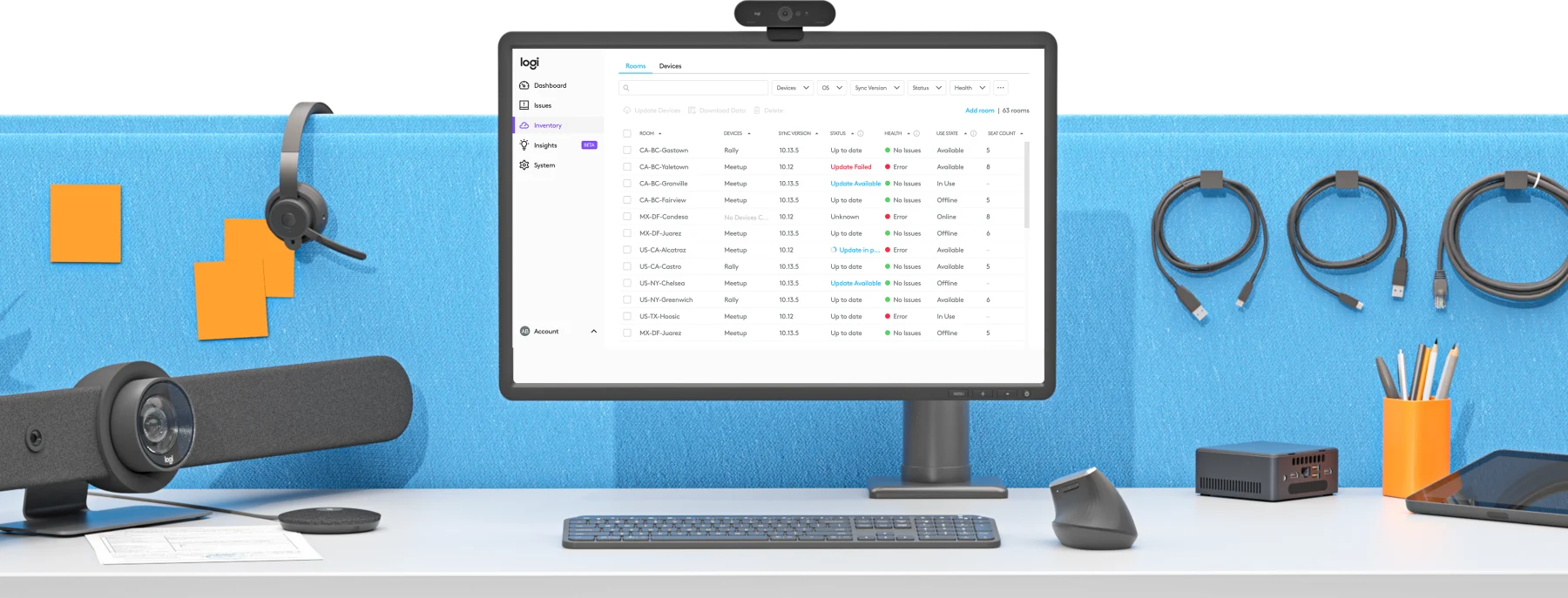

SIMPLE TO MANAGE

Monitor and manage your meeting room devices from one single platform with Logitech Sync. Plus, get business insights into how your rooms are being used.

DEVICE MANAGEMENT TECHNOLOGY PARTNERS

Our integration with partner solutions and dashboards means you can easily manage your devices in other platforms.

REDUCE YOUR CARBON FOOTPRINT

Support remote workers and reduce business travel by replacing in-person meetings with video meetings that are as natural as face-to-face.

LEARN MORE ABOUT LOGITECH’S SUSTAINABILITY PLEDGE

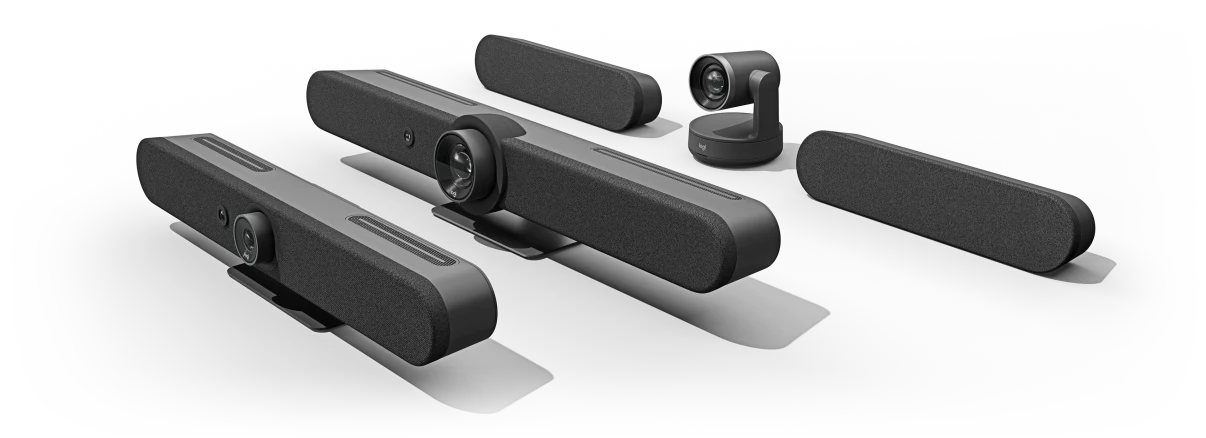

WELCOME TO THE FAMILY

Explore Logitech’s beautifully simple, next generation of small, medium, and large room solutions that can be deployed in PC or appliance mode.

WATCH THE VIDEO

>ACCESSORIES

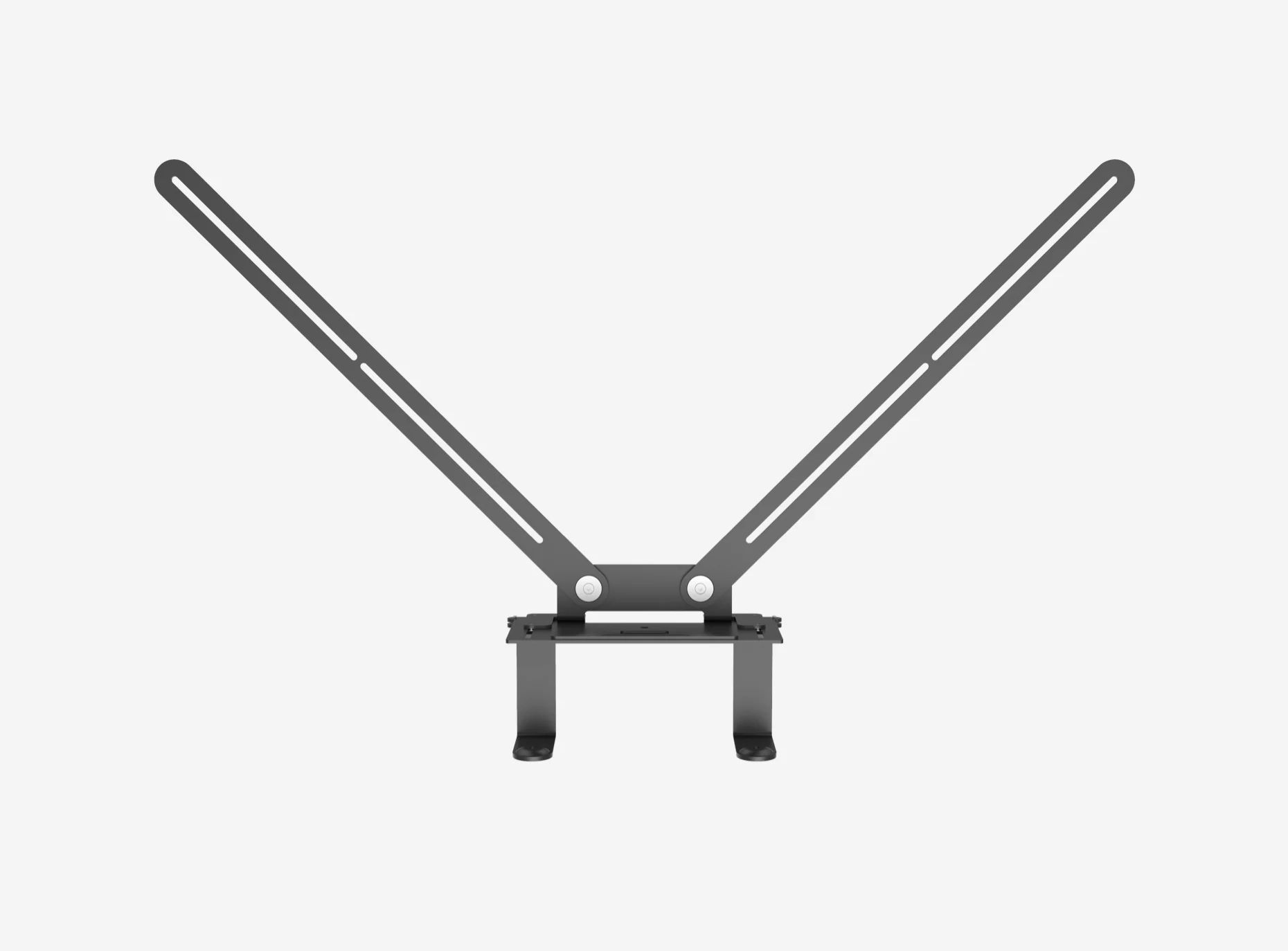

TV MOUNT FOR VIDEO BARS

Secure Rally Bar above or below the TV or Monitor.

Learn more about TV Mount for Video Bars

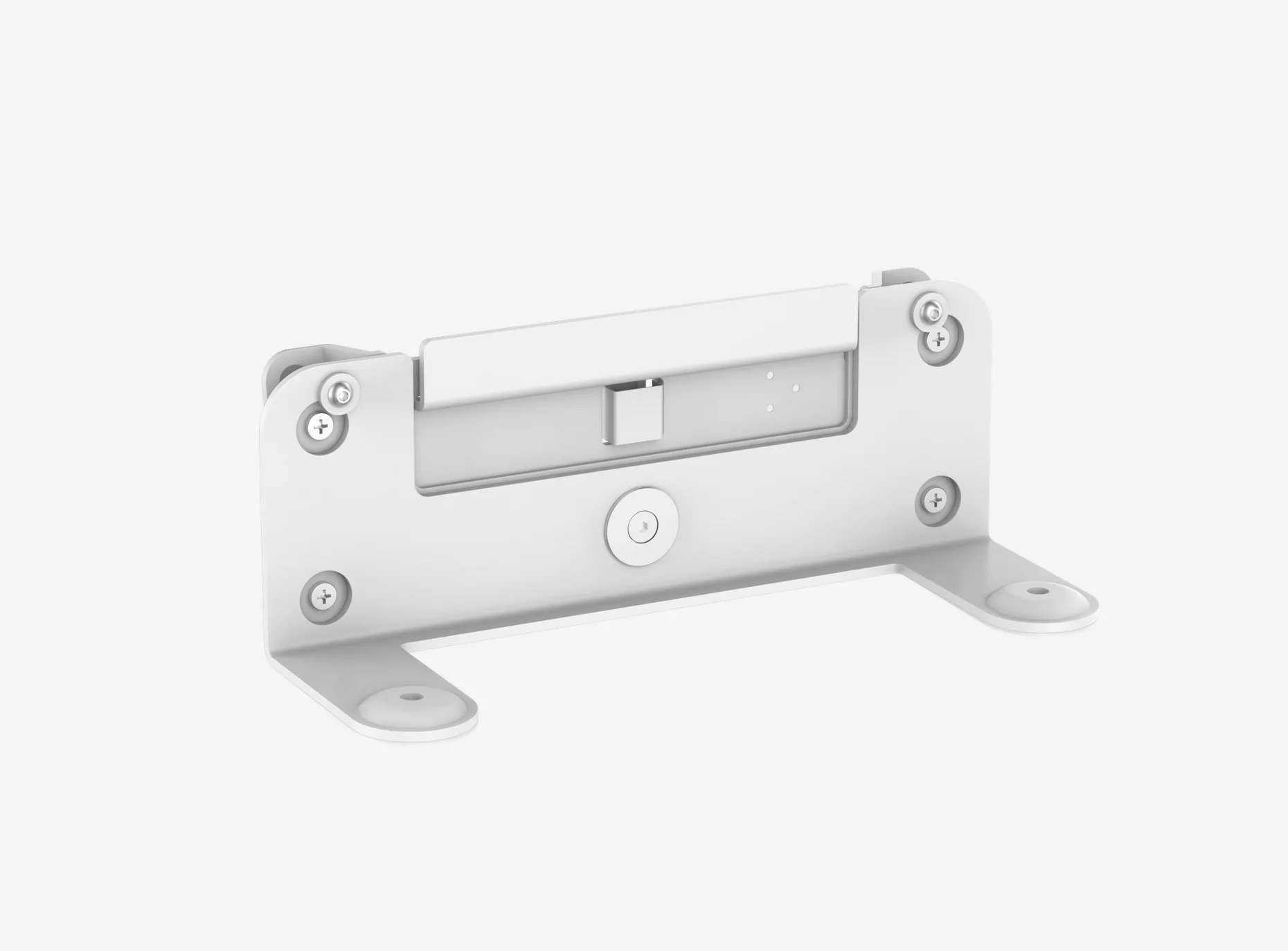

Wall Mount for Video Bars

Neatly and confidently secure Rally Bar or Rally Bar Mini on the wall for minimal footprint..

Learn more about Wall Mount for Video Bars

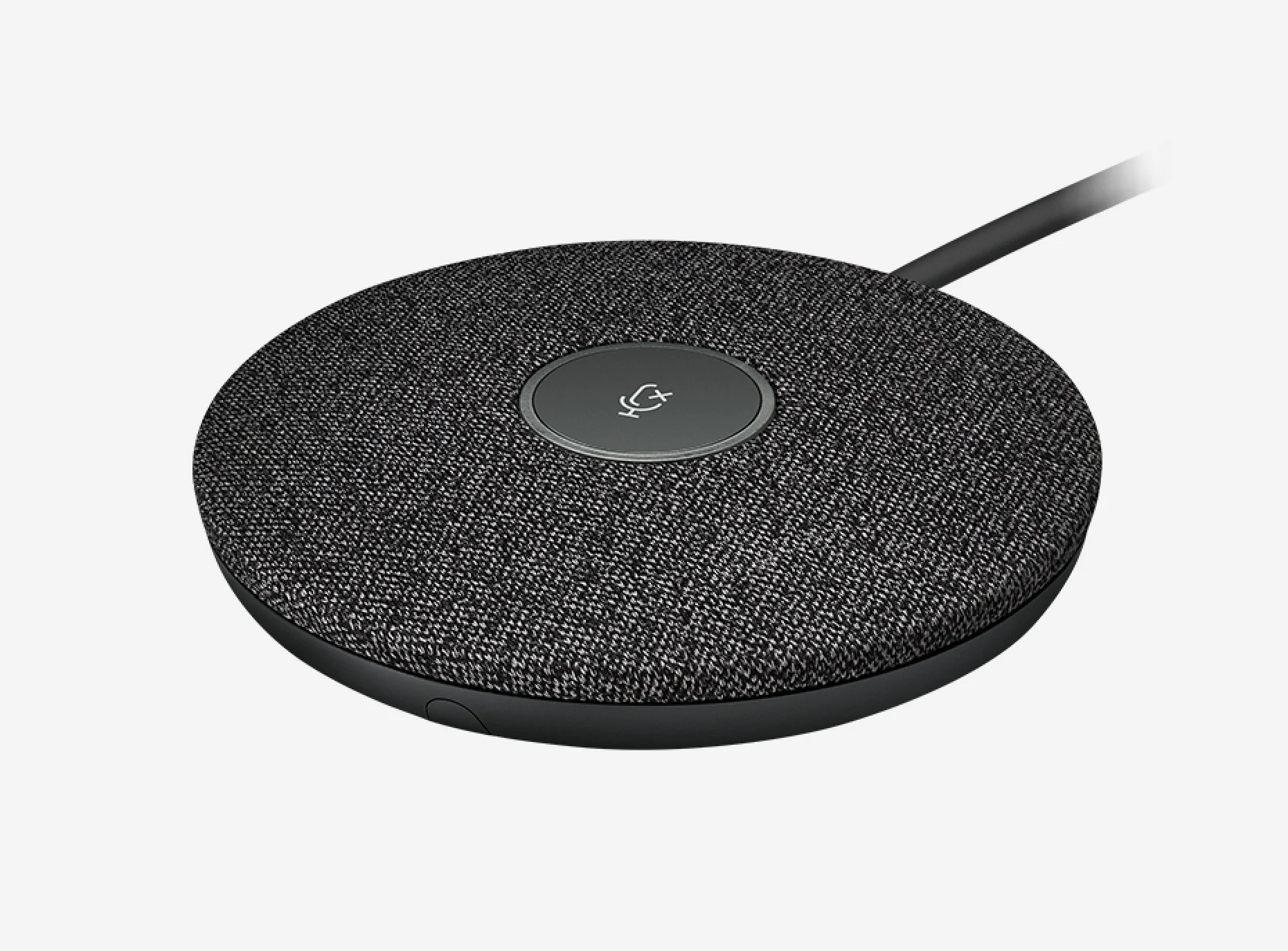

RALLY MIC POD

Add up to 3 Rally Mic Pods to expand audio coverage and provide convenient access to mute controls.

LEARN MORE ABOUT RALLY MIC POD

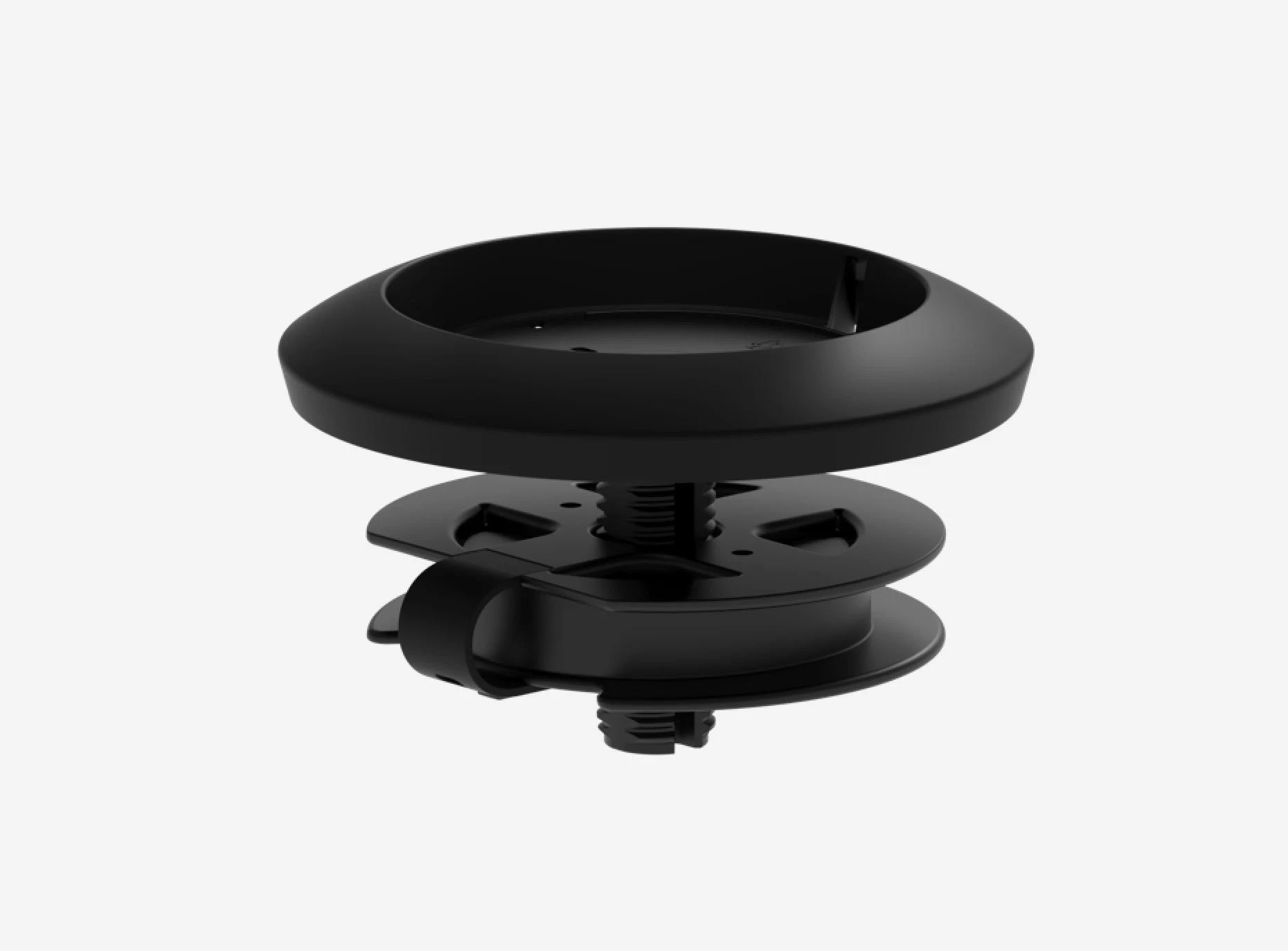

RALLY MIC POD MOUNT

Hide cables and anchor mics on the table or ceiling for a clean, finished look.

LEARN MORE ABOUT MIC POD MOUNT

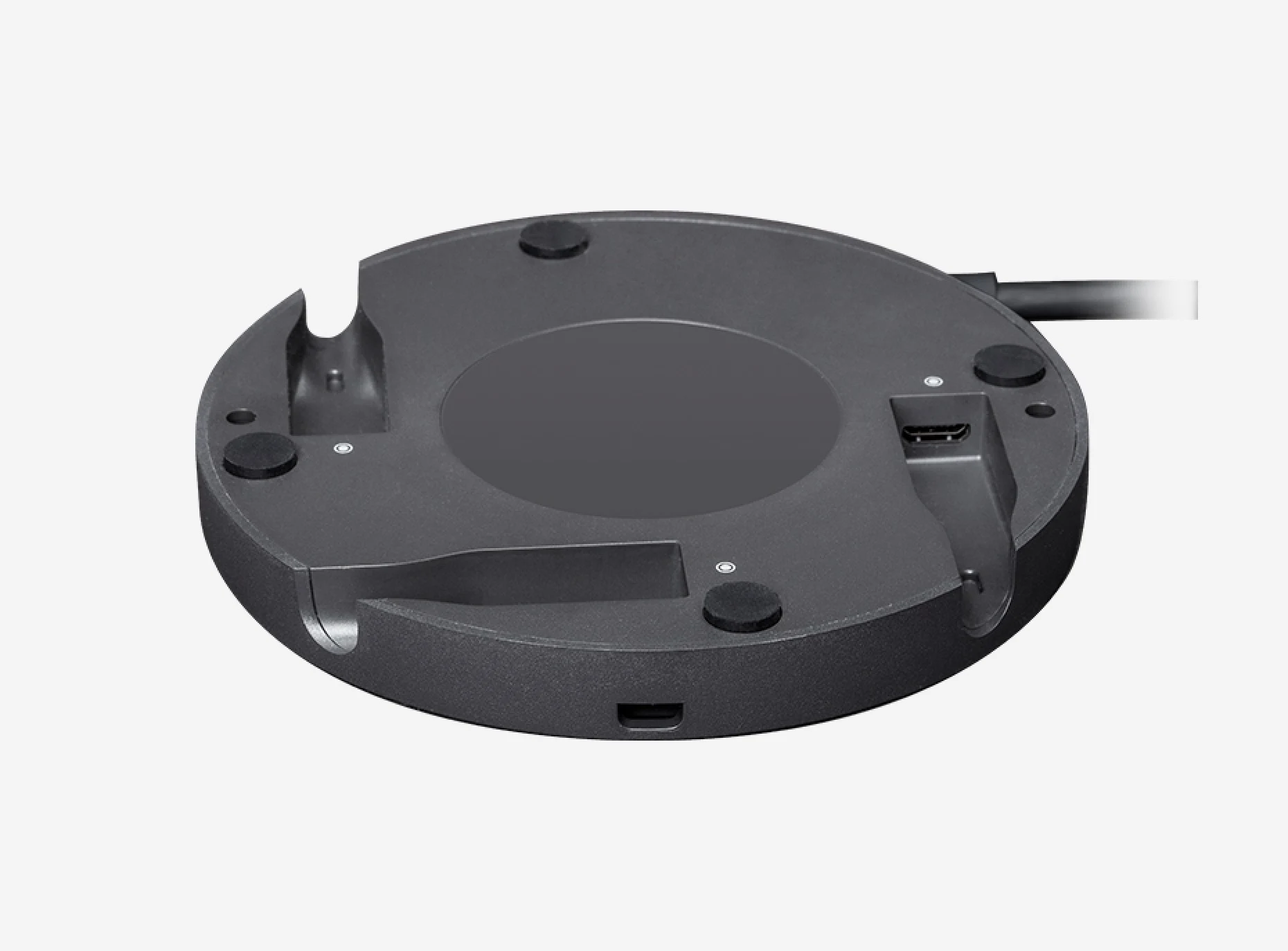

RALLY MIC POD HUB

Customize microphone placement for your conference table configuration.

LEARN MORE ABOUT MIC POD HUB

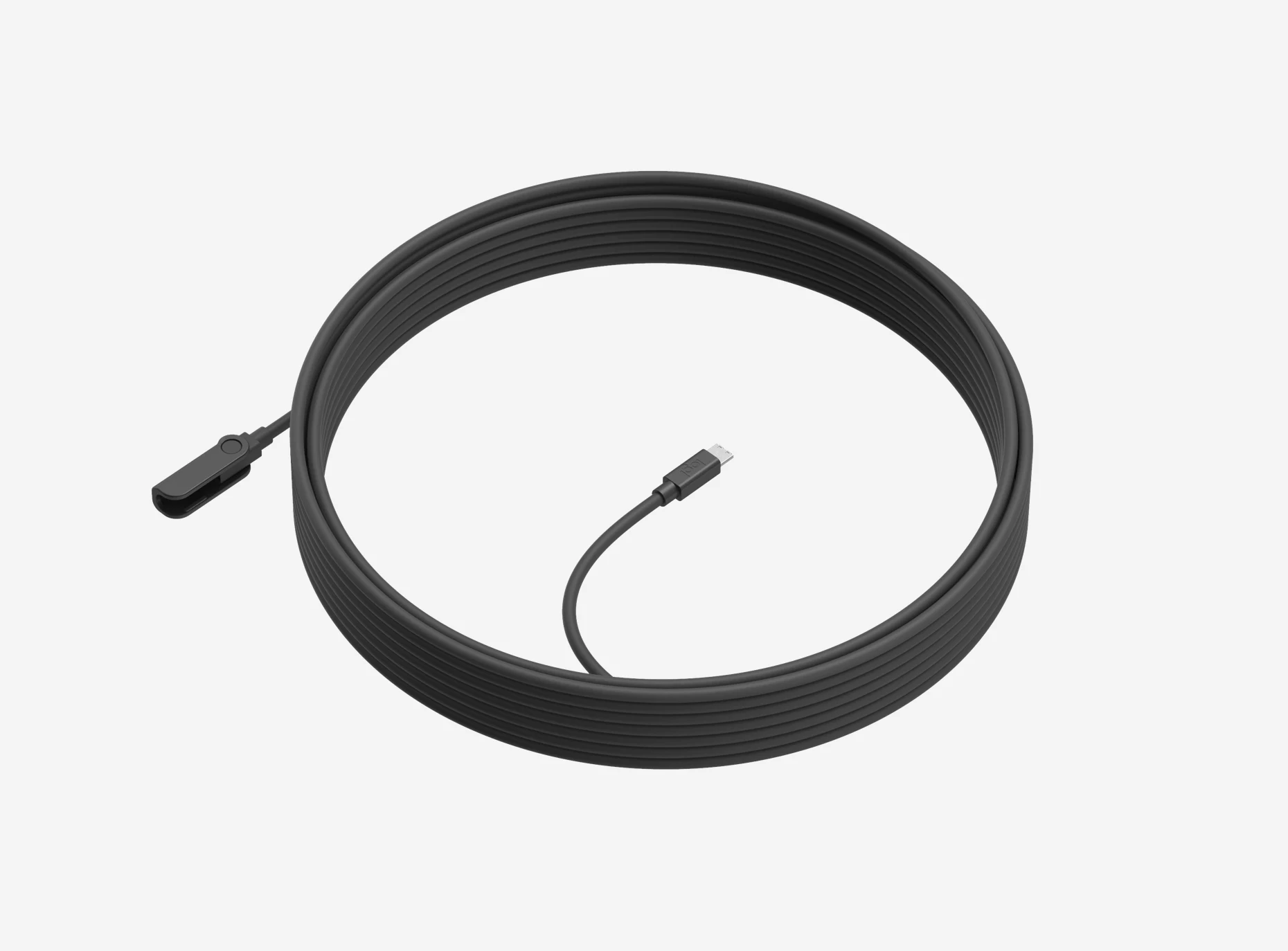

RALLY MIC POD EXTENSION CABLE

Easily connect Rally Mic Pods to Rally Bar with up to two 10m extension cables.

LEARN MORE ABOUT RALLY MIC POD EXTENSION CABLE

DIMENSIONS

Height: 164 mm
Width: 910 mm
Depth: 130.5 mm 2
Lens Depth: 28.8 mm
Weight: 7.08 kg

TECHNICAL SPECIFICATIONS

Camera

  • Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
  • Pan: Motorized ±25°
  • Tilt: Motorized ±15°
  • Zoom: 15X HD zoom (5X optical, 3X digital available with upcoming software update)
  • Diagonal field of view (dFoV): 90°
  • Horizontal Field of View: 82.1°
  • Vertical Field of View: 52.2°
  • Total Room Coverage: 132.1° Horizontal x 82.2° Vertical

Speakers

  • Drivers: 2x 70 mm
  • Output: 90dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
  • Sensitivity: 90+/-3dB SPL at 1W, ½ meter
  • THD: 1kHz < 2%
  • Speaker Sampling Rate: 48 kHz

Microphones

  • Frequency response: 90Hz – 16kHz
  • Sensitivity: >-36dBFS +/-1 dB @ 1Pa
  • Microphone data rate output: 48 kHz
  • Pickup Range: 7 m
  • Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
  • Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
  • Noise suppression: AI filter
  • Add-on Mics: Supports up to 3 additional Rally Mic Pods for larger conference rooms

RightSense™ Technologies

  • RightLight™: Renders natural skin tones for each participant.
  • RightSight: Maintains persistent room awareness and detects human figures to auto-frame participants.
  • RightSound: Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo

Interfaces

  • HDMI Out: 2
  • HDMI In: 1
  • USB 3.0: 3x Type A, 1x Type C
  • Network: 10/100/1G Ethernet
  • WiFi: 802.11a/b/g/n/ac (MIMO)
  • External Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)
  • Remote Control: Bluetooth® Low Energy

Power & Cables

  • Power supply: Auto-sensing
  • Operating Voltage/Power: 100-240V, 19V, 4.74A
  • Power Supply Dimensions: 127 mm x 51 mm x 30 mm
  • DC Cable: 1.5 m
  • AC Cable: 1 m
  • HDMI 1.4 Cable: 2 m
  • USB A to USB C 3.0 Cable: 2.2 m

Environmental

  • Operating Temperature: 0 to 40°C
  • Storage Temperature: -40 to 70 °C
  • Humidity: 10 to 95%
  • BTU/hr: 57 idle, 64 in meeting

Security

  • Full Disk Encryption: AES-128
  • Data Encryption: Symmetric Keys, PKI
  • Device Identity: Protected by device attestation
  • Device Access: Authenticated using API
  • Key Protection: Arm TrustZone, RPMP

Certifications & Compatibility

  • Certifications: Zoom™ Certified, Certified for Microsoft Teams as a USB device. Contact the manufacturer for additional information on pending and granted certifications.
  • Compatibility: Plug and play USB connectivity with virtually any video conferencing application
  • Appliance mode: Supports compatible video conferencing software in appliance mode (no PC required), including Zoom Rooms Appliances.
  • Certification pending for Microsoft Teams Rooms on Android and additional video conferencing platforms.

GENERAL SPECIFICATIONS

  • Built-in Components: 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management & retention system, table stand, Logitech CollabOS platform
  • Enclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference
  • Device Management: Logitech Sync
  • Displays Supported: 2
  • Display Resolution: Up to 4K

Accessories

  • Mounts: Wall Mount for Video Bars, TV Mount for Video Bars
  • Audio: Rally Mic Pod, Rally Mic Pod Hub, Rally Mic Pod Mount, Rally Mic Pod Extension Cable
  • Connectivity: Logitech Strong USB (10 m, 25 m, 45 m)
  • Touch Controller: Logitech Tap

PACKAGE CONTENTS

  • Rally Bar
  • Power supply
  • AC power cord
  • HDMI cable
  • USB cable
  • Remote control
  • Lens caps for main camera and AI Viewfinder
  • User documentation

WARRANTY INFORMATION

Standard: 2-year limited hardware warranty included.
Extended: Additional one-year extended warranty available at the time of hardware purchase.
Contact your reseller for availability.

PORT NUMBER

  • Graphite: 960-001312
  • White: 960-001324
